I been trying to figure this out following tutorials but I keep getting nowhere.
I have a gauge that from the left its rotation is 220 the right side is 141 I am trying to use it as a gauge for 10000 step goal and I am totally lost at this point
3 Likes
OK, with you, and welcome here.
So, what kind of movement of the dial are you expecting?
Also, are you using a progress element or an arc shape?
Fill ratio will give you the total of 1 so steps/10k will give you that full circle that none of us can achieve because some guy made it up. 3-7k is nearer realistic. But focus on the bold, not the rant.
Yes I have done 17k steps in a day but it hurt for days. 3-7k is fine,
2 Likes

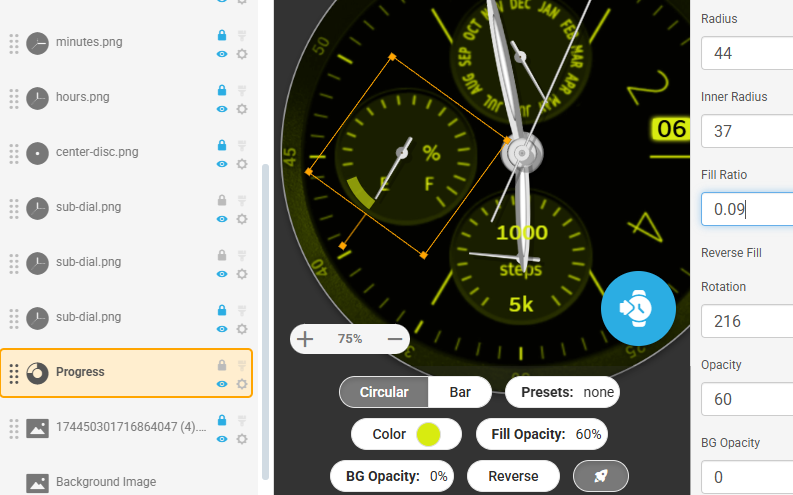

hello I am looking for a hand rotation for steps goal this is the face gauge I am trying to figure out
3 Likes
See my fuel guage battery here and adapt:
2 Likes
Thank you for the fast reply. That is what I have been trying to do I have the power gauge down but I keep getting lost when it comes to the steps I either get the gauge going from middle top to bottom or just keeps spinning till it reaches 10000 goal
3 Likes
Steps using a dial with hand
((#ZSC#/10000)*360)
Or For Less than full circle
(start position +- (#ZSC#/10000)*Total Degrees Of Hand Movement)
5 Likes
Thanks for that tip I have been able to do a full circle but i get lost on the start position with the (± thing I do not seem to be able to grasp this type of math
4 Likes
On a battery gauge the start position is zero percent. I would assume on steps it would be the same. The +/- always messes with me also. I just use âtrial and errorâ and get them to work the way I want them to.
3 Likes
You made the main thing already, figuring the starting and ending angles.
I tried to visualize it for you
To make the hand travel the needed distance, you count the active angle. First the reminder to 360° from the starting angle 220°. Its 140°. Your end angle, you say, is 141° (although I guess the gauge supposed to be symmetrical), so the active angle will be these two together: 281°
Now the rotation formula should be like above mentioned âfill ratioâ (step done to step goal) times active angle plus the starting angle, or minus the reminder from start to 360° (negative value means rotation counter clockwise).
To not exceed beyond the last tick, the hand travel should be limited with clamp function for example with restraining the fill ratio between 0 and 1 like this: (travel_angle*clamp(step_count/step_goal,0,1)+starting_angle)
6 Likes
Can someone change the title to include the word âTutorialâ.
I would do it myself but for me to do it arbitrarily would be wrong, so how about agreeing that if two or three of those with âRegularâ status agree it should become a tutorial- then the topic title could be changed
5 Likes
Yes . Indeed . Master Class ( Cavalry )
4 Likes
I told you not to call me that âMelinda May, Agents ofâŠâ
3 Likes
OMG that was a great tutorial I got it figured out. I want to thank everyone on here that responded to my plea for help, everyone was so helpful
5 Likes
Itâs why we are all here. Would love to see your end result posted here once you are ready to publish.
2 Likes
Here is wat I came up with
2 Likes
Nice watchface.
1 Like
Check your battery gauge background image, some of the nearly empty ticks are barely visible. I would highlight that area or fix the ticks.
1 Like
There is actually a function for this: interpDial
So if you know your starting point, in this case 220° and the total travel is as @petruuccios said is 281°
then the rotation formula is: (interpDial(#ZSC#, 0, 10000, 281, 220))
ZSC = the variable that you want to rotate
0 = minimum value
10000 = maximum steps in this case
281 = travel angle
220 = starting point or offset
1 Like
Well that makes life easier!
2 Likes
I only just stumbled across that function 3 weeks ago!
Donât know how long it has been aroundâŠ
1 Like
